Building your Tensorflow model

Build your model in Python and push it to the cloud

To build your Tensorflow model you will need to export your training data as explained in this post.

The overall workflow is outlined below. This post describes how to import the TF records, how to build the model and how to export the model to an ee readable format.

Find the colab example with all steps here


The detailed steps are shown in the diagram below. It is basically pulling data from the Google cloud bucket and pushing the model back to the AI platform.

aiworkflow3

Step 1: Import the training data. You can pull data from the cloud or from your harddisk directly.

import tensorflow as tf

tf.enable_eager_execution()
print(tf.__version__)

trainFilePath = 'gs://yourbucket/Hanoi/trainFile.tfrecord.gz'
testFilePath = 'gs://yourbucket/Hanoi/testFile.tfrecord.gz'

print('Found training file.' if tf.gfile.Exists(trainFilePath)
else 'No training file found.')

# Create a dataset from the TFRecord file in Cloud Storage.
trainDataset = tf.data.TFRecordDataset(trainFilePath, compression_type='GZIP')
# Print the first record to check.
print(iter(trainDataset).next())

Step 2: Parse the data in the right format.

 """# Read a serialized example into the structure defined by featuresDict."""

def parse_tfrecord(example_proto):
  """The parsing function.

  Read a serialized example into the structure defined by featuresDict.

  Args:
    example_proto: a serialized Example.

  Returns:
    A tuple of the predictors dictionary and the label, cast to an `int32`.
  """
  parsed_features = tf.io.parse_single_example(example_proto, featuresDict)
  labels = parsed_features.pop(label)
  return parsed_features, tf.cast(labels, tf.int32)

# Map the function over the dataset.
parsedDataset = trainDataset.map(parse_tfrecord, num_parallel_calls=5)

# Print the first parsed record to check.
print(iter(parsedDataset).next())

Step 3: Build the model


# Commented out IPython magic to ensure Python compatibility.
from tensorflow import keras

# How many classes there are in the model.
nClasses = 5

# Add features .
inputDataset = parsedDataset #.map(addFeatures)

# Keras requires inputs as a tuple. Note that the inputs must be in the
# right shape. Also note that to use the categorical_crossentropy loss,
# the label needs to be turned into a one-hot vector.
def toTuple(dict, label):
#return tf.transpose(list(dict.values())), tf.one_hot(indices=label, depth=nClasses)
return (tf.expand_dims(tf.transpose(list(dict.values())), 1),
tf.expand_dims(tf.one_hot(indices=label, depth=nClasses), 1))

# Repeat the input dataset as many times as necessary in batches.
inputDataset = inputDataset.map(toTuple).shuffle(3000).batch(300).repeat()

# Define the layers in the model.
model = tf.keras.models.Sequential([
tf.keras.layers.Input((None, None, l-1,)),
tf.keras.layers.Conv2D(512, (1, 1), activation=tf.nn.relu),
tf.keras.layers.Dropout(0.15),
tf.keras.layers.Conv2D(256, (1, 1), activation=tf.nn.relu),
tf.keras.layers.Dropout(0.15),
tf.keras.layers.Conv2D(nClasses, (1, 1), activation=tf.nn.softmax)
])

# Compile the model with the specified loss function.
model.compile(optimizer=tf.train.AdamOptimizer(learning_rate=0.005),#'adam',
loss='categorical_crossentropy',
metrics=['accuracy'])

# Fit the model to the training data.
# Don't forget to specify `steps_per_epoch` when calling `fit` on a dataset.
training = model.fit(x=inputDataset, epochs=100,steps_per_epoch=10)

# %pylab inline
plot(training.history['loss'],'x--')
plot(training.history['acc'], 'o--')

aiperformance

Step 4: Validate the results


testDataset = (
tf.data.TFRecordDataset(testFilePath, compression_type='GZIP')
.map(parse_tfrecord, num_parallel_calls=5)
.map(toTuple)
.batch(1)
)

model.evaluate(testDataset)

aiperformanceValidation

Step 5:  Push your model to the bucket or store it locally


outputBucket = "yourbucket/Hanoi/"
MODEL_DIR = 'gs://' + outputBucket + '/model'
tf.contrib.saved_model.save_keras_model(model, MODEL_DIR)

Step 6: Some pieces of code to make the model readable for earth engine


from tensorflow.python.tools import saved_model_utils

meta_graph_def = saved_model_utils.get_meta_graph_def(MODEL_DIR, 'serve')
inputs = meta_graph_def.signature_def['serving_default'].inputs
outputs = meta_graph_def.signature_def['serving_default'].outputs

# Just get the first thing(s) from the serving signature def. i.e. this
# model only has a single input and a single output.
input_name = None
for k,v in inputs.items():
input_name = v.name
break

output_name = None
for k,v in outputs.items():
output_name = v.name
break

# Make a dictionary that maps Earth Engine outputs and inputs to
# AI Platform inputs and outputs, respectively.
import json
input_dict = "'" + json.dumps({input_name: "array"}) + "'"
output_dict = "'" + json.dumps({output_name: label}) + "'"

print(input_dict)
print(output_dict)

# Put the EEified model next to the trained model directory.
EEIFIED_DIR = 'gs://' + outputBucket + '/eeified'
PROJECT = 'servir-rlcms'



earthengine set_project {PROJECT}
earthengine model prepare --source_dir {MODEL_DIR} --dest_dir {EEIFIED_DIR} --input {input_dict} --output {output_dict}

Step 7: Create a new model and push your trained model

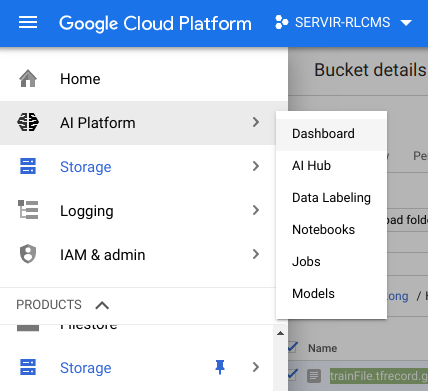

aiCloud

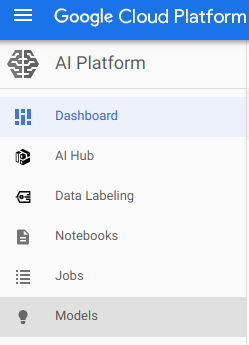

Click models in the AI Dashboard

aiModels

Create your new model

aiModels1

gcloud ai-platform versions create {VERSION_NAME} \
--project {PROJECT} \
--model {MODEL_NAME} \
--origin {EEIFIED_DIR} \
--runtime-version=1.14 \
--framework "TENSORFLOW" \
--python-version=3.5
