NDSI

The Normalized Difference Snow Index

The Normalized Difference Snow Index (NDSI) was designed to estimate the amount of a pixel covered in snow (Riggs et al. 1994):

NDSI = (green – SWIR) / (green + SWIR)

example

// User specified parameters

// setup Visualization
var viz = {min:-0.50, max:0.75, palette:['red', 'green', 'blue', 'white']};

// Data

// get landsat 8 image
var image = ee.Image("LANDSAT/LC08/C01/T1_RT_TOA/LC08_148035_20131103");

// Functions

// calculate ndsi
var ndsi = image.normalizedDifference(['B3', 'B6']);

// Add to map

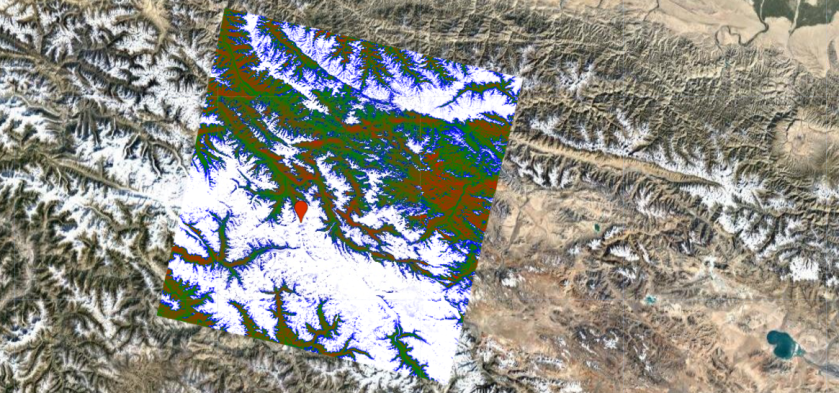

Map.addLayer(ndsi,viz,"snow index K2");
Map.centerObject(ndsi,7);
